| Quantity: | |
|---|---|
310PS-125032B-52
WANDA
Overview
Elastic Rubber 310 Series medium duty plate caster are designed for hand trolley, tool car, medium heavy equipment, top plate fitting, bright zinc plating, double raceway, excellent for medium heavy duty platform trucks and factory use. Up to 150kgs load capacity.
Technical Date | |
Wheel Diameter | 125 mm |
Width of Tread | 32 mm |
Wheel Color | Blue |
Wheel Material | Elastic Rubber |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 150 kg |
Overall Height: | 155 mm |
Wheel Bearing | Ball Bearing |
Plate Size | 92x60 mm |
Plate Hole Space | (70-76.5)x44 mm |
Plate Hole Size | 9 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 80 |
Temperature Range | - 15 / + 60 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ | |

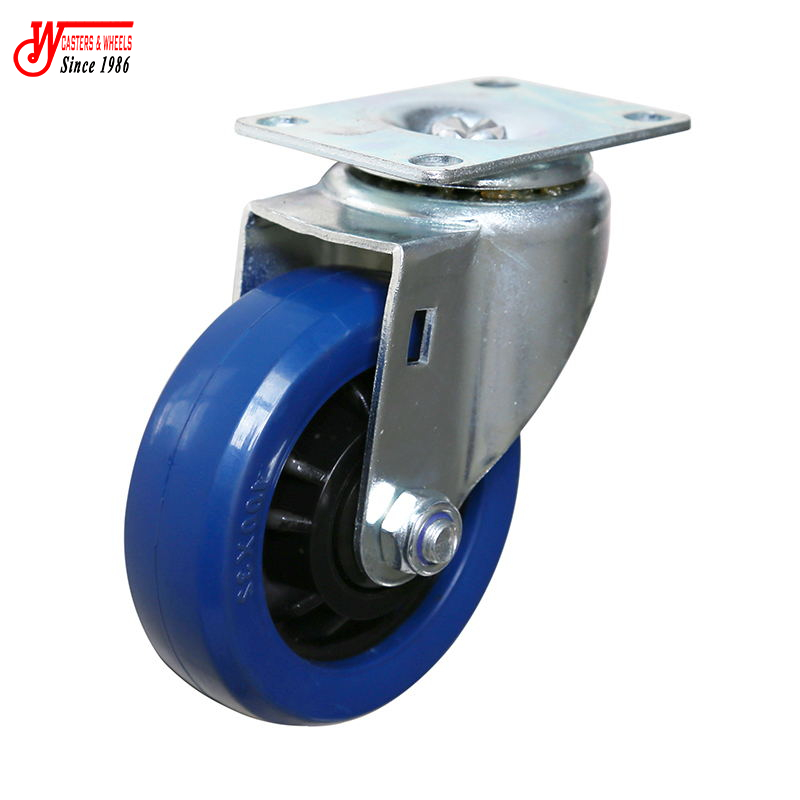

Picture may differ from original product

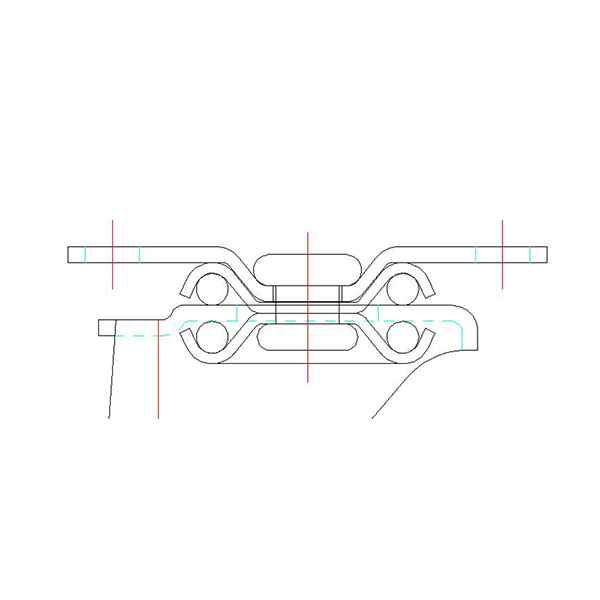

Casters Stucture & Mounting

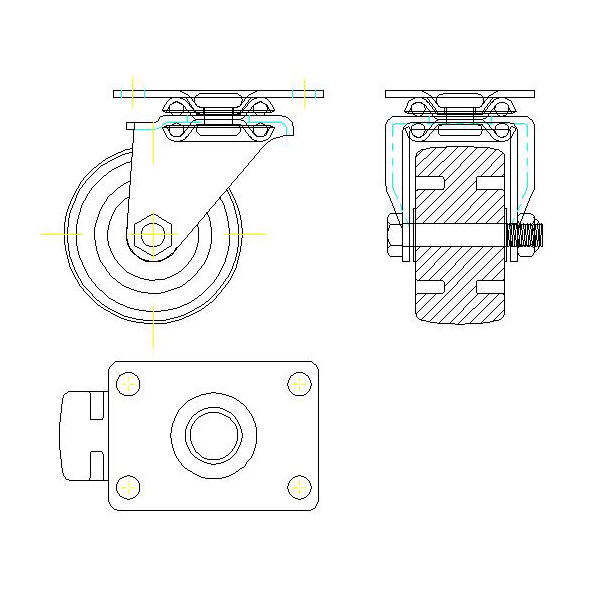

Casters Stucture & Mounting
