4JAPS-250045DB-83JL
WANDA
Overview

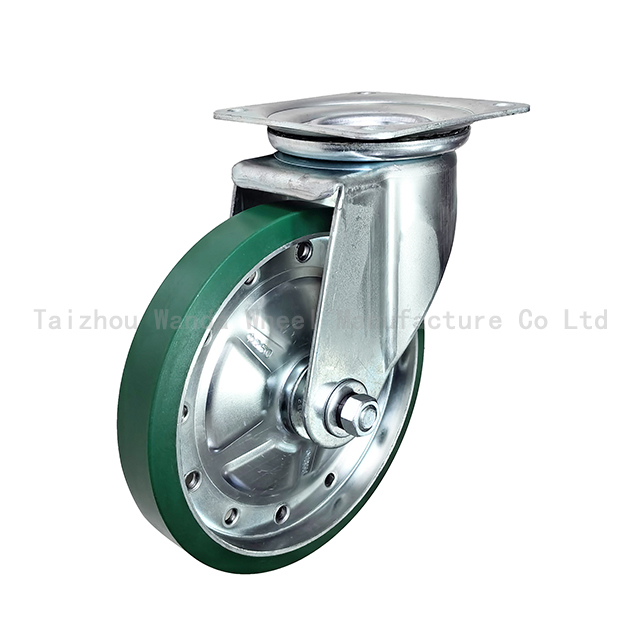

4JA Series 250mm Japan Style 10 inch polyurethane casters, meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection.
Technical Date | |
Wheel Diameter | 250 mm |
Width of Tread | 45 mm |
Wheel Color | Green |
Wheel Material | Polyurethane |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 500 kg |
Overall Height: | 305 mm |
Wheel Bearing | Flange Ball Bearing |
Plate Size | 160x160 mm |
Plate Hole Space | 125x125 mm |
Plate Hole Size | 14 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 95 |
Temperature Range | - 15 / + 50 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ | |
Picture may differ from original product
Casters Stucture & Mounting
Casters Stucture & Mounting
