Medium Duty 200mm Japan Swivel Polyurethane with Side Brake Caster ock for table

200mm Japan Style 4JA Series polyurethane with Side Brake casters, meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection and dynamic load up to 400kg each.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 4JAPS-200042DB-83JL-ST

  • WANDA

Overview

4JA Series 200mm Japan Style 8 inch polyurethane casters with side brake , meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a  green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection.

Product Description

Technical Date

Wheel Diameter

200 mm

Width of Tread

42 mm

Wheel Color

Green

Wheel Material

Polyurethane

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel with Side BrakeCaster

Load Capacity:

400 kg

Overall Height:

250 mm

Wheel Bearing

Flange Ball Bearing

Plate Size

140x140 mm

Plate Hole Space

112x112/106x106 mm

Plate Hole Size

11.5 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 95

Temperature Range

15 / + 50

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

¡


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

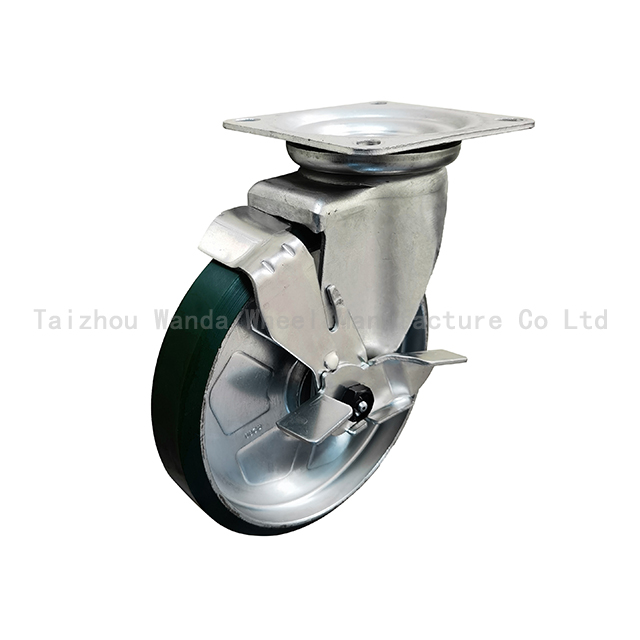

640x640 UJB-200 Japan Style 200mm PU on Steel Swivel Caster with Side Brake 1520 水印

Picture may differ from original product

6b7eaa5556202ff4cd599c5fef1c588b

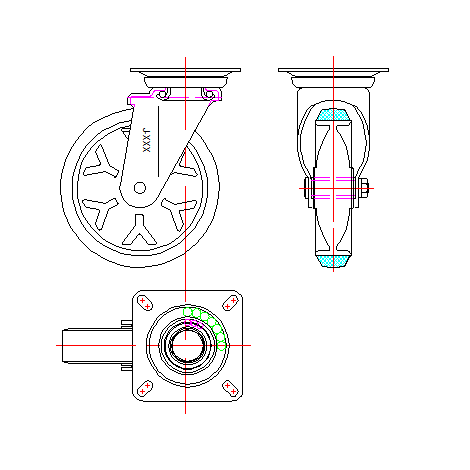

Casters Stucture & Mounting

Japan 75mm Swivel Caster Stucture

Casters Stucture & Mounting

Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
