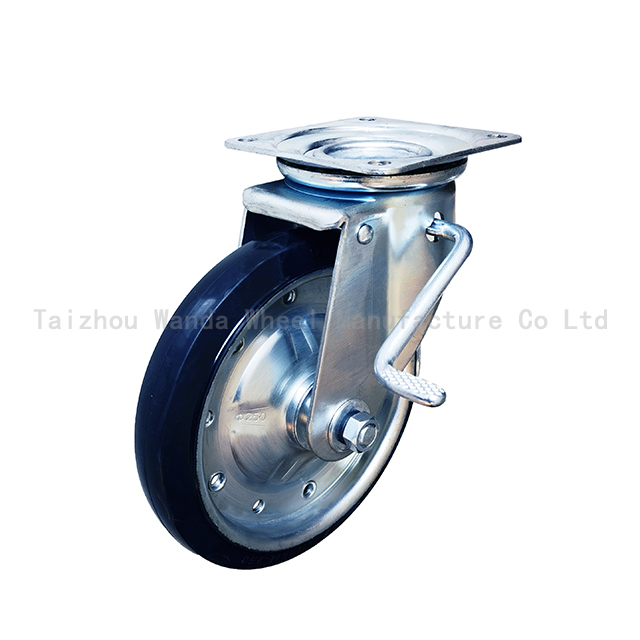

Medium Duty 150 mm Japan Swivel Rubber with total lock Caster for table

150mm Japan Style 4JA Series rubber with total lock casters, meet JIS industrial casters standard. welded disk rubber caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a black rubber tread permanently compressed between two steel discs which are welded together. welded disc rubber wheels are quiet rolling and offer excellent floor protection and dynamic load up to 200kg each.

Quantity:
Availability:





Inquire Add to Basket

Model:
4JAPS-150045DB-82JA-SU
Brand:
WANDA

Product Description

Overview

4JA Series 150mm Japan Style 6 inch rubber with total lock casters, meet JIS industrial casters standard. welded disk rubber caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a black rubber tread permanently compressed between two steel discs which are welded together. welded disc rubber wheels are quiet rolling and offer excellent floor protection.

Product Description

Technical Date
Wheel Diameter	150 mm
Width of Tread	45 mm
Wheel Color	Black
Wheel Material	Elastic Rubber
Fastening Type	Top Plate
Surface Finish	Bright Zinc
Rotation Type:	Swivel with Total Lock Caster
Load Capacity:	200 kg
Overall Height:	198 mm
Wheel Bearing	Flange Ball Bearing
Plate Size	120x120 mm
Plate Hole Space	93x93/87x87 mm
Plate Hole Size	11 mm
Threaded Size	N/A
Stem Long	N/A
Place of Origin	China
Brand Name	Wanda
Usage	Wide Usage
Hardness of Tread	Shore A 70
Temperature Range	- 20 / + 80 ℃
Related Process	Molding, Stamping, Machining, Welding, Assembling, Packing
