Expandable Stem 5x1.25 Outdoor Hard Rubber Swivel Casters

If you need something to quickly and easily tansport food-related items around your establishment, consider the Wanda Hard Rubber Caster with Expandable Rubber Stem Caster - 5" Dia. This stem caster wheel can be attached to things like carts to aid in the daily tasks of a food business.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 310ES-125032P-02H-STL

  • WANDA

Overview

If you need something to quickly and easily tansport food-related items around your establishment, consider the Wanda Hard Rubber Caster with Expandable Rubber Stem Caster - 5" Dia. This stem caster wheel can be attached to things like carts to aid in the daily tasks of a food business.

Product Description

Technical Date

Wheel Diameter

125 mm

Width of Tread

32 mm

Wheel Color

Black

Wheel Material

Hard Rubber

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel Caster

Load Capacity:

150 kg

Overall Height:

155 mm

Wheel Bearing

Plain Bearing

Plate Size

N/A

Plate Hole Space

N/A

Plate Hole Size

N/A

Threaded Size

1/2"

Stem Long

2-1/2"

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 85

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

¡


Attrition

l

l

l

l

¡


Corrosion resistance

l

l

l

l

¡

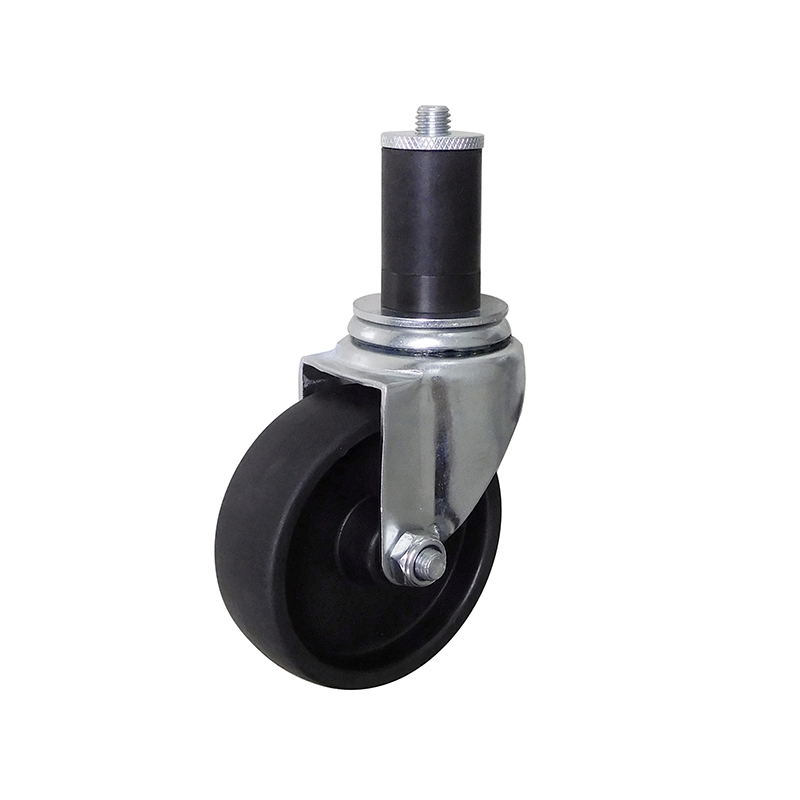

expandable 4x1.25 Rubber Casters

Picture may differ from original product

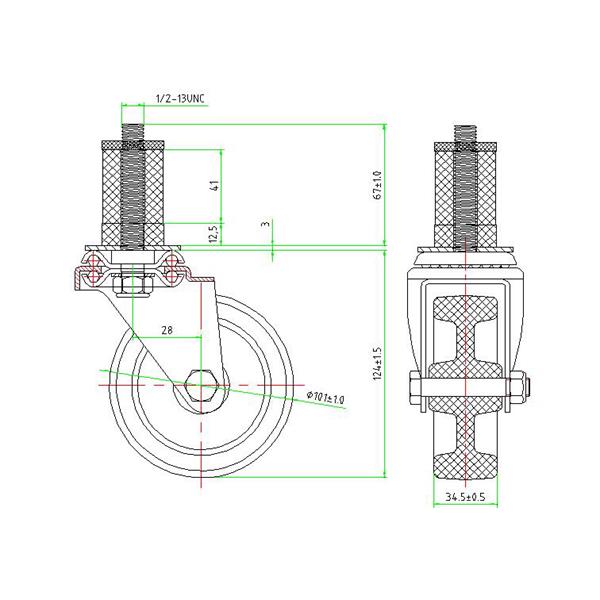

expandable 4x1.25 Rubber Caster drawing(1)

Casters Stucture & Mounting

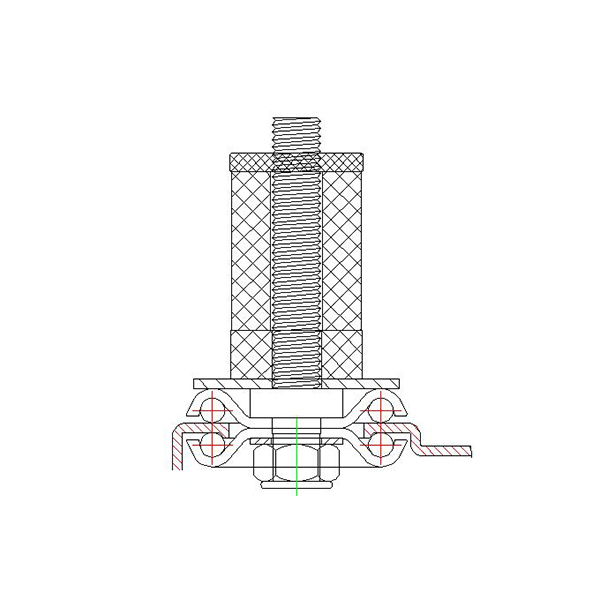

expandable 4x1.25 Rubber Caster with side brake drawings

Casters Stucture & Mounting

Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection
Certifications

Certifications
