Overview

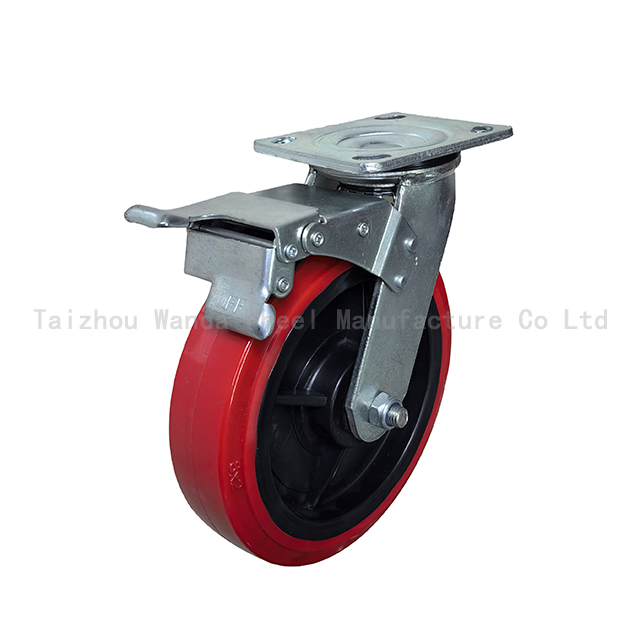

8"x2" PP on TPU casters are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.
Technical Date | |
Wheel Diameter | 200 mm |
Width of Tread | 50 mm |
Wheel Color | Red Claret |
Wheel Material | Good Quality Polyurethane |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel with Double Brake Caster |
Load Capacity: | 410 kg |
Overall Height: | 189 mm |
Wheel Bearing | Roller Bearing |
Plate Size | 115x100 mm |
Plate Hole Space | 93x75/75x67 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 93 |
Temperature Range | - 15 / + 60 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | l | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ | |
Picture may differ from original product
Casters Structure & Mounting
Casters Structure & Mounting
Optional type and size as below:
Swivel caster
Fixed Caster
Swivel Caster with tread brake
Fixed Caster with side brake
Swivel Caster with tread brake
Production Process
