Home » Casters » Heavy Duty Casters » 8 inch Heavy Duty PU on Iron Swivel with side brake Caster for hand trolley

loading

8 inch Heavy Duty PU on Iron Swivel with side brake Caster for hand trolley

Cast Iron mold on polyurethane 8"x2" swivel with side brake casters with ron core are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 600PS-200050R-13-STB

  • WANDA

Overview

8"x2" Cast Iron mold on polyurethane swivel with side brake casters are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional PU caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.

Product Description

Technical Date

Wheel Diameter

200 mm

Width of Tread

50 mm

Wheel Color

Red

Wheel Material

Good Quality Polyurethane

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel with side brake Caster

Load Capacity:

450 kg

Overall Height:

239 mm

Wheel Bearing

Roller Bearing

Plate Size

115x100 mm

Plate Hole Space

93x75/75x67 mm

Plate Hole Size

11 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 93

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

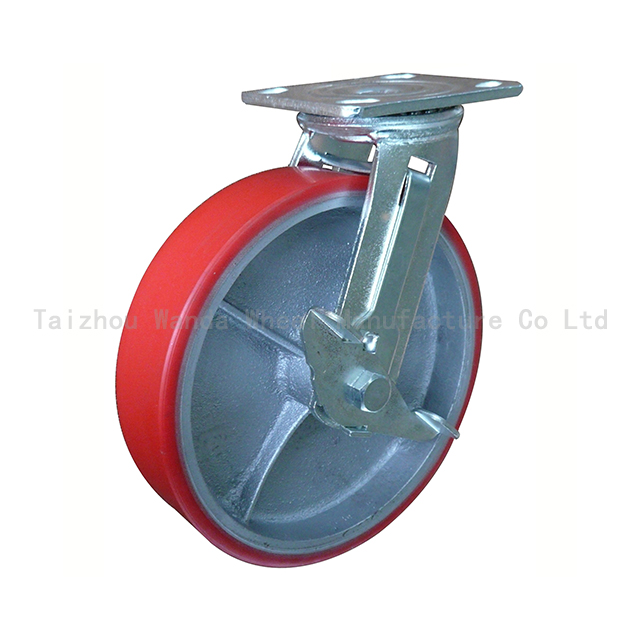

640x640 8x2铁芯PU万向边刹轮 水印

Picture may differ from original product

Drawing-6x2 PU on Iron Swivel Casters

Casters Structure & Mounting

Drawing-6x2 PU on Iron Swivel Caster

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-13 4 300 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-13 5 350 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-13 6 400 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-13 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-13 4 300 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-13 5 350 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-13 6 400 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-13 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-13-STA/B 4 300 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-13-STA/B 5 350 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-13-STA/B 6 400 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-13-STA/B 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster with side brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-13-STA/B 4 300 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-13-STA/B 5 350 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-13-STA/B 6 400 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-13-STA/B 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-13-DUC 4 300 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-13-DUC 5 350 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-13-DUC 6 400 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-13-DUC 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11



Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
