600PF-150050R-06
| Technical Date | |
| Wheel Diameter (D) | 150 mm |
| Width of Tread (W) | 50 mm |
| Color | Black |
| Type | Fixed Caster |
| Load Capacity | 420 kg |
| Overall Height (H) | 189 mm |
| Bearing Type | Roller Bearing |
| Plate Size(XxY) | 115x100 mm |
| Hole Spacing (X’xY’) | 92x75/75x67 mm |
| Plate Hole Size (P) | 11 mm |
| Threaded Size (S) | N/A |
| Stem Long (L) | N/A |
| Place of Origin | China |
| Brand Name | Wanda |
| Usage | Wide Usage |
| Hardness of Tread | N/A |
| Temperature | - 35 / + 300 ℃ |
| Related Process | Molding, Stamping, Machining, Welding, Plating,Assembling, Packing |
| Advantages at a glance | ||||||
| Roll performance | ● | ● | ● | ● | ● | |
| Movement noise | ● | ● | ● | ○ | ○ | |
| Attrition | ● | ● | ● | ● | ● | |
| Corrosion resistance | ● | ● | ● | ● | ● | |

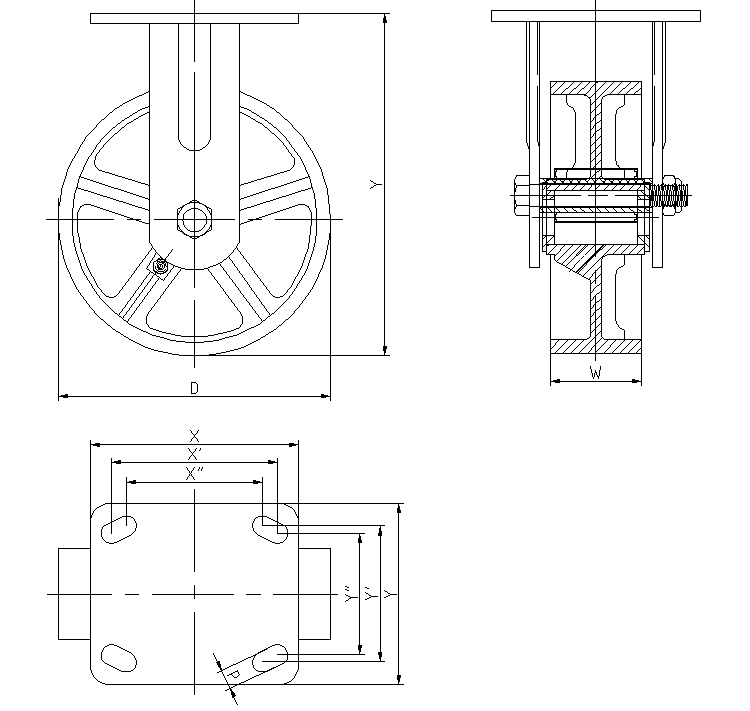

Dimensions
Stucture & Mounting
