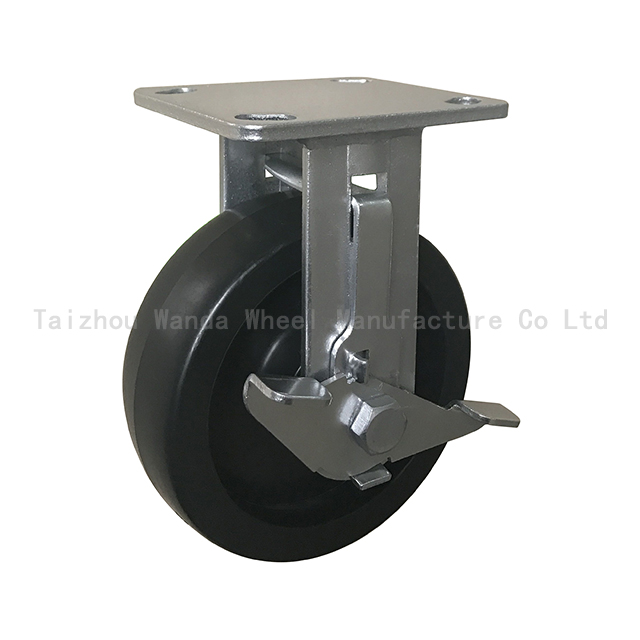

6 inch Medium Duty PP Rigid with Side brake Caster for hand trolley

PP 6"x2" Rigid with Side brake casters are superior to PP casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.

Quantity:
Availability:





Inquire Add to Basket

Model:
600PF-150050R-05-STA
Brand:
WANDA

Product Description

Overview

6"x2" PP casters are superior to PP casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.

Product Description

Technical Date
Wheel Diameter	150 mm
Width of Tread	50 mm
Wheel Color	Black
Wheel Material	Good Quality PP
Fastening Type	Top Plate
Surface Finish	Bright Zinc
Rotation Type:	Rigid with Side brake Caster
Load Capacity:	300 kg
Overall Height:	189 mm
Wheel Bearing	Roller Bearing
Plate Size	115x100 mm
Plate Hole Space	93x75/75x67 mm
Plate Hole Size	11 mm
Threaded Size	N/A
Stem Long	N/A
Place of Origin	China
Brand Name	Wanda
Usage	Wide Usage
Hardness of Tread	Shore A 93
Temperature Range	- 15 / + 60 ℃
Related Process	Molding, Stamping, Machining, Welding, Assembling, Packing

Advantages at a glance
Roll performance	l	l	l	l	l
Movement noise	l	l	l	l	l
Attrition	l	l	l	l	l
Corrosion resistance	l	l	l	l	¡

Picture may differ from original product

Casters Structure & Mounting

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO.	SPEC (INCH)	CAPACITY (KG)	DIA (MM)	WIDTH (MM)	WHEEL BEARING	SWIVEL RADIUS (MM)	OVERALL HEIGHT (MM)	TOP PLATE (MM)	HOLE CENTERS (MM)	PLATE HOLE (MM)
600PS-100050R-05	4	226	100	50	Roller Bearing	31	141	115x100	92x75/75x67	11
600PS-125050R-05	5	272	125	50	Roller Bearing	41	163	115x100	92x75/75x67	11
600PS-150050R-05	6	360	150	50	Roller Bearing	44	189	115X100	92x75/75x67	11
600PS-200050R-05	8	410	200	50	Roller Bearing	44	239	115x100	92x75/75x67	11

Fixed Caster

ITEM NO.	SPEC (INCH)	CAPACITY (KG)	DIA (MM)	WIDTH (MM)	WHEEL BEARING	SWIVEL RADIUS (MM)	OVERALL HEIGHT (MM)	TOP PLATE (MM)	HOLE CENTERS (MM)	PLATE HOLE (MM)
600PF-100050R-05	4	226	100	50	Roller Bearing	/	141	115x100	92x75/75x67	11
600PF-125050R-05	5	272	125	50	Roller Bearing	/	163	115x100	92x75/75x67	11
600PF-150050R-05	6	360	150	50	Roller Bearing	/	189	115X100	92x75/75x67	11
600PF-200050R-05	8	410	200	50	Roller Bearing	/	239	115x100	92x75/75x67	11

Swivel Caster with tread brake

ITEM NO.	SPEC (INCH)	CAPACITY (KG)	DIA (MM)	WIDTH (MM)	WHEEL BEARING	SWIVEL RADIUS (MM)	OVERALL HEIGHT (MM)	TOP PLATE (MM)	HOLE CENTERS (MM)	PLATE HOLE (MM)
600PS-100050R-05-STA	4	226	100	50	Roller Bearing	31	141	115x100	92x75/75x67	11
600PS-125050R-05-STA	5	272	125	50	Roller Bearing	41	163	115x100	92x75/75x67	11
600PS-150050R-05-STA	6	360	150	50	Roller Bearing	44	189	115X100	92x75/75x67	11
600PS-200050R-05-STA	8	410	200	50	Roller Bearing	44	239	115x100	92x75/75x67	11

Fixed Caster with side brake

ITEM NO.	SPEC (INCH)	CAPACITY (KG)	DIA (MM)	WIDTH (MM)	WHEEL BEARING	SWIVEL RADIUS (MM)	OVERALL HEIGHT (MM)	TOP PLATE (MM)	HOLE CENTERS (MM)	PLATE HOLE (MM)
600PF-100050R-05-STA	4	226	100	50	Roller Bearing	/	141	115x100	92x75/75x67	11
600PF-125050R-05-STA	5	272	125	50	Roller Bearing	/	163	115x100	92x75/75x67	11
600PF-150050R-05-STA	6	360	150	50	Roller Bearing	/	189	115X100	92x75/75x67	11
600PF-200050R-05-STA	8	410	200	50	Roller Bearing	/	239	115x100	92x75/75x67	11

Swivel Caster with tread brake

ITEM NO.	SPEC (INCH)	CAPACITY (KG)	DIA (MM)	WIDTH (MM)	WHEEL BEARING	SWIVEL RADIUS (MM)	OVERALL HEIGHT (MM)	TOP PLATE (MM)	HOLE CENTERS (MM)	PLATE HOLE (MM)
600PS-100050R-05-DUA	4	226	100	50	Roller Bearing	31	141	115x100	92x75/75x67	11
600PS-125050R-05-DUA	5	272	125	50	Roller Bearing	41	163	115x100	92x75/75x67	11
600PS-150050R-05-DUA	6	360	150	50	Roller Bearing	44	189	115X100	92x75/75x67	11
600PS-200050R-05-DUA	8	410	200	50	Roller Bearing	44	239	115x100	92x75/75x67	11

Production Process

Casters Production Process

Strictly Quality Inspection

Certifications
