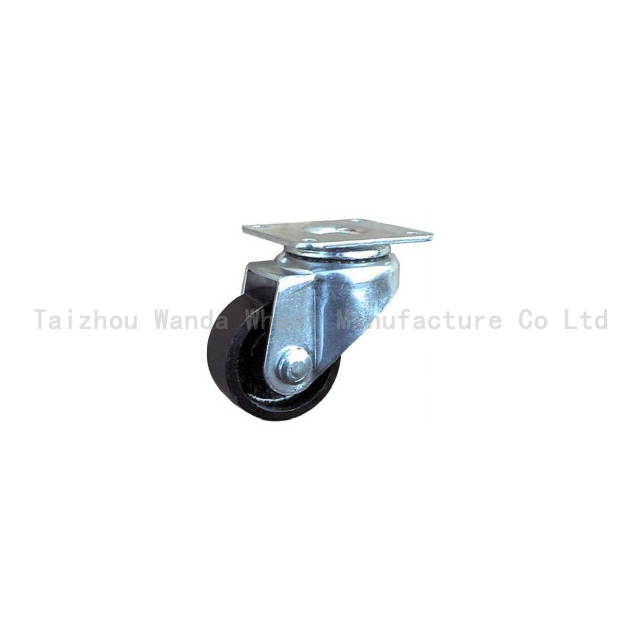

50mm 2"x1" Heavy Duty Cast Iron Steel Swivel Casters

Wanda 2"x1" cast iron and semi steel wheels casters are made of incredibly strong steel that is highly resistant to abuse and tough environments. Cast Iron wheels are able to withstand high temperatures and can be exposed to water and/or other abusive factors in challenging environments. They can withstand exposure to chemicals, grease and oil. However, one downside is that Cast Iron wheels will rust over time if exposed to fluids and chemicals regularly. High Load Capacities (Up to thousands of lbs depending on wheel size), High Heat Resistance (-45F to +500F), Resistance to liquids and chemicals, Multiple styles of bearings available
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 600PS-050022R-01

  • WANDA

Overview

50mm Wanda 2"x1" cast iron and semi steel wheels casters are made of incredibly strong steel that is highly resistant to abuse and tough environments. Cast Iron wheels are able to withstand high temperatures and can be exposed to water and/or other abusive factors in challenging environments. They can withstand exposure to chemicals, grease and oil. However, one downside is that Cast Iron wheels will rust over time if exposed to fluids and chemicals regularly. High Load Capacities (Up to thousands of lbs depending on wheel size), High Heat Resistance (-45F to +500F), Resistance to liquids and chemicals, Multiple styles of bearings available

Product Description

Technical Date

Wheel Diameter

50 mm

Width of Tread

22 mm

Wheel Color

Black, Silver, Gray

Wheel Material

Grey Cast Iron

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel Caster

Load Capacity:

70 kg

Overall Height:

74 mm

Wheel Bearing

NO

Plate Size

63x55 mm

Plate Hole Space

43x40 mm

Plate Hole Size

mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

HB220

Temperature Range

Up to 420℃

Related Process

Casting, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

¡

¡

¡


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

l



640x640 2“铸铁万向轮 水印

Picture may differ from original product

Drawing-6x2 Cast Iron Swivel Caster

Casters Structure & Mounting

Caster Stucture & Mounting

Casters Structure & Mounting


Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-01 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-01 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-01 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-01 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-01 4 320 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-01 5 380 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-01 6 420 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-01 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-01-STL 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-01-STL 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-01-STL 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-01-STL 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster with side brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-01-STL 4 320 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-01-STL 5 380 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-01-STL 6 420 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-01-STL 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-01-DUT 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-01-DUT 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-01-DUT 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-01-DUT 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11
