| Quantity: | |
|---|---|
310PS-075032P-52P
WANDA
Overview

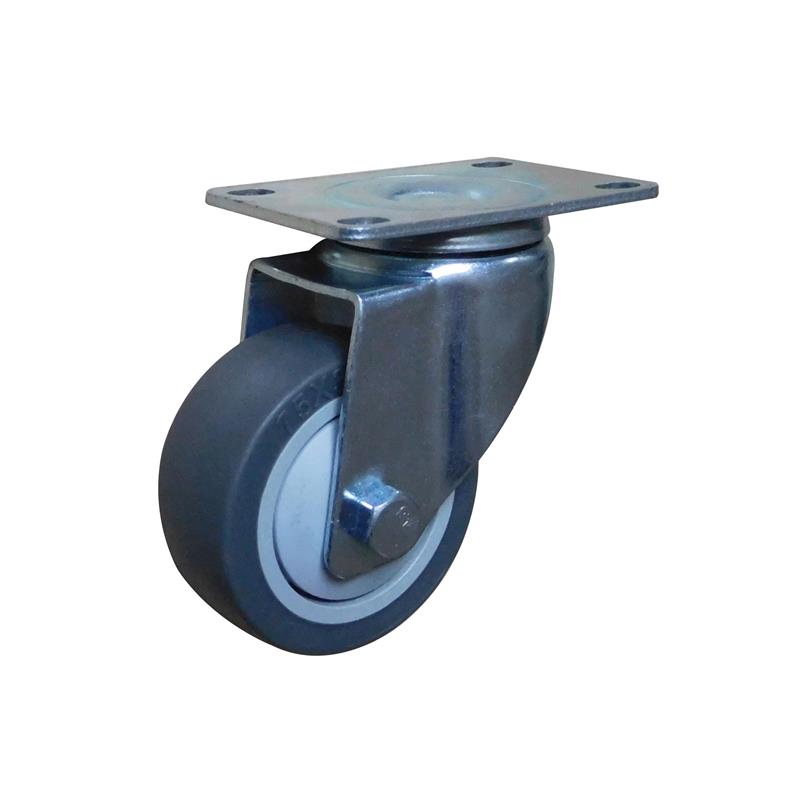

3"x1.25" inch (75mm) Thermo-Rubber (TPR) wheel casters, provide excellent floor protection, are resistant to most chemical/oils, and help reduce vibration by absorbing shock. Standard precision ball bearings provide easy and quiet rolling. Full thread guards prevent debris from entangling the axles. Durometer: 75A (±5) Temp Range: -40°F to +180°F
Technical Date | |
Wheel Diameter | 75 mm |
Width of Tread | 32 mm |
Wheel Color | Grey |
Wheel Material | Thermo-Rubber (TPR) |
Fastening Type | Top Plate |
Surface Finish | Bright Blue White Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 90 kg |
Overall Height: | 104 mm |
Wheel Bearing | Ball Bearing |
Plate Size | 94x62 mm |
Plate Hole Space | 71x45/78x45 mm |
Plate Hole Size | 8 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 75 |
Temperature Range | - 15 / + 60 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | ¡ | |
Corrosion resistance | l | l | l | l | ¡ | |
Picture may differ from original product
Casters Structure & Mounting
Casters Structure & Mounting
Optional type and size as below:
Swivel caster
Fixed Caster
Swivel Caster with tread brake
Production Process
