600PF-125050R-12
WANDA
Overview

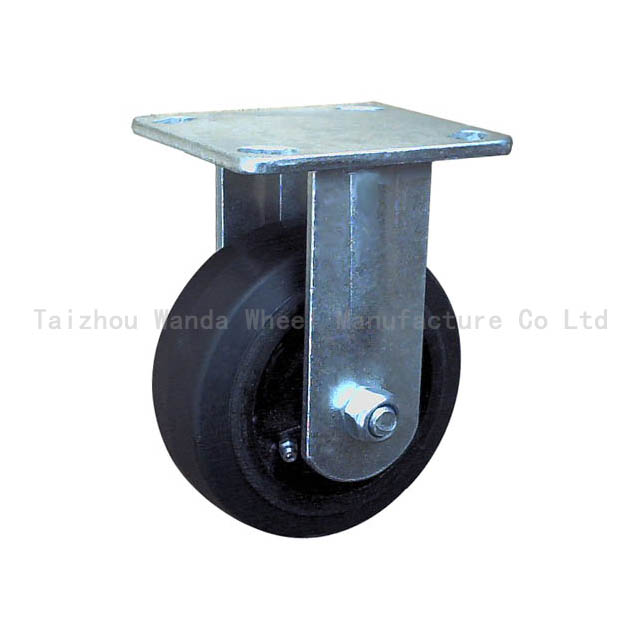

125mm Wanda 5"x2" mold-on rubber casters with cast on iron and semi steel wheels casters are made of incredibly strong steel that is highly resistant to abuse and tough environments. mold-on rubber casters with cast on iron wheels are able to withstand high temperatures and can be exposed to water and/or other abusive factors in challenging environments. They can withstand exposure to chemicals, grease and oil. However, one downside is that Cast Iron wheels will rust over time if exposed to fluids and chemicals regularly. High Load Capacities (Up to thousands of lbs depending on wheel size), Resistance to liquids and chemicals, Multiple styles of bearings available
Technical Date | |
Wheel Diameter | 125 mm |
Width of Tread | 50 mm |
Wheel Color | Silver, Gray |
Wheel Material | Mold-on rubber casters with cast on iron |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Rigid Caster |
Load Capacity: | 300 kg |
Overall Height: | 163 mm |
Wheel Bearing | Roller Bearing |
Plate Size | 115x100 mm |
Plate Hole Space | 83x71 mm |
Plate Hole Size | 10.5 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | HB220 |
Temperature Range | Up to 50℃ |
Related Process | Casting, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | l | |
Movement noise | l | l | ¡ | ¡ | ¡ | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | l | |
Picture may differ from original product
Casters Structure & Mounting
Casters Structure & Mounting
Optional type and size as below:
Swivel caster
| ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
| 600PS-100050R-12 | 4 | 200 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
| 600PS-125050R-12 | 5 | 250 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
| 600PS-150050R-12 | 6 | 280 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
| 600PS-200050R-12 | 8 | 300 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Fixed Caster
Swivel Caster with tread brake
Fixed Caster with side brake
Swivel Caster with tread brake
Production Process
